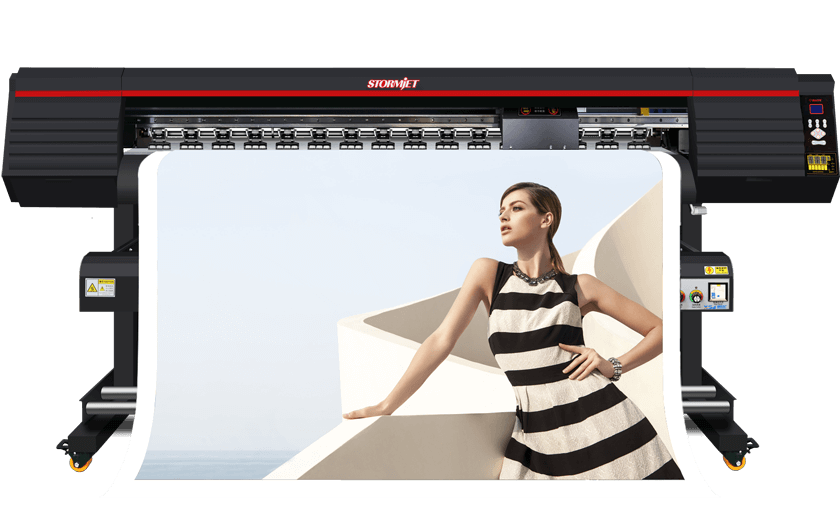

2 Heads SJ-7162TS

Eco Solvent Printer
Printer Head:   2*EPSON I3200-A1/E1 Printhead
Printer Resolution:  3200DPI
Printer Speed:  80sqm/h
Printer Width:  1600mm
Printer Ink:  Eco Solvent Ink
Printer Media: PP PVC,Vinyl,Backlit,Mesh,etc
RIP Software: Maintop, Photoprint,Onyx,etc.
share:
Main Features
Epson I3200-E1 Printhead
Epson original printhead, high precision and fast speed.
Epson I3200-E1 Printhead
Smart Dryer
Front dryer, speed up ink drying, intelligently adjust temperature, more intuitive.
Smart Dryer
High Quality Ink
Using factory original ink, bright color. The finer ink is not easy to block the print head.
High Quality Ink
Capping Station
High-quality capping station is used, can adjust the position of it and have better sealing.
Capping Station
Printer Details
Suction Platform
01
Suction Platform
Built-in suction device, which can absorb thinner materials and prevent them from deviating.
Anti-collision on the carriage
02
Anti-collision on the carriage
Anti-collision settings are installed on both sides of carriage to avoid accidents during printing and damage to head.
Imported THK Guide Rail
03
Imported THK Guide Rail
The guide rail is smoother, no noise, the carriage runs more smoothly, and the printing process is smoother.
Upgraded Appearance
04
Upgraded Appearance
The appearance is upgraded, black and red color matching, high-end atmosphere, more popular with customers.
Specification
Model SJ-7162TS
Printhead Type: EPSON I3200-A1/E1 Printhead
Quantity:2pc
Resolution:3200DPI
Printing Speed 2pass  80㎡/h
3pass  55㎡/h
4pass  40㎡/h
6pass  30㎡/h
Ink Type Eco-solvent Ink,Water-based Ink
Ink Color CMYK
Print width 1600mm
Print Media Indoor Advertising Material, PP, Vinyl,Flex Banner,Canvas Banner, etc
Media Feeding Method Roll to Roll, Leaf
lmage Format JPG, TIF, BMP, PDF ,etc.
RIP Software Maintop,Photoprint, Riin,ONYX, etc.
Computer System Operating System: Win7 and above
Transmission Interface: Giga-bit Ethernet Port
Hard Disk: 500G or more
GPU: ATI Mobility Radeon
CPU: Intel Core i5 or above
RAM:8G DDR4 or above
Power Supply 50HZ/60HZ, 220V, 10A
Temp. 15-30℃
Humidity 35%-65%
Machine Size Dimension: 2570*745*1422mm
Packing: 2652*865*750mm
Weight Gross Weight: 240KG Net Weight:200KG
